SPARK utilizes a User Assigned Managed Identity (UAMI). This reduces the overall attack surface of SPARK as it eliminates the requirements to store secrets/keys within the SPARK application. User Assigned Managed Identities are the recommended managed identity type for Microsoft services.

Requirements

The Azure Administrator will be required for this step. The user must have:

  • Global Administrator role
  • Owner role for the resource group
  • Access to the Azure Portal
  • Ability to run PnP.PowerShell scripts

Reference Link - Azure roles

Reference Link - What is managed identities for Azure resources?

[!NOTE] The required permissions for the PnP.PowerShell script will require at a minimum:

  1. AppRoleAssignment.ReadWrite.All
  2. Application.Read.All

Reference Link - Add-PnPAzureADServicePrincipalAppRole

[!NOTE] If running Azure Cloud Shell, or any shell that doesn’t have a GUI, then reference the link below if you are unable to connect to PnP.

Reference Link - [BUG] Unable to connect to PNP with CloudShell

Step 1: Sign into Azure

Use the correct URL for your environment:

Environment Login URL
Worldwide (Commercial) https://portal.azure.com
GCC https://portal.azure.com
GCC High https://portal.azure.us
DoD https://portal.azure.us

Step 2: Create User Assigned Managed Identity

  1. From the top search bar, enter Managed Identities and select it from the search results

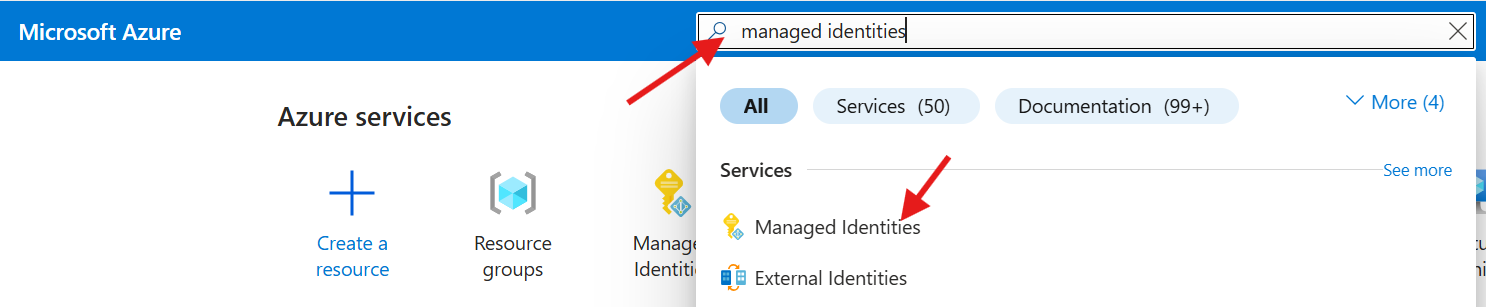

Manage Identities

2. Click on Create and then set the properties shown in the table

Name Value
Subscription The subscription associated with the resource group
Resource Group The resource group created in step 4
Name uami-spark-spoactions
Region The resource group used in step 4
Create UAMI

3. Click Review + create

4. Click Create to create the user assigned managed identity

5. Wait for the user assigned managed identity resource is created, and then select Go to resource

Configure Graph Permissions

[!NOTE] Annotate the following variables in the template spreadsheet:

  • v_uamiName: The uami name
  • UAMI objId: The uami object id

Step 3: Configure User Assigned Managed Identity Graph Permissions

  1. Modify the script below with the following parameters
  2. Open PowerShell v7.2+ and run the script shown below
Name Value
Certificate The certificate thumbprint associated with the app registration that is used for PnP.PowerShell
Client ID The app registration id that is used for PnP.PowerShell
SPO Admin Url The SharePoint Admin center url
Tenant Environment The environment containing the tenant:
USGovernment
USGovernmentHigh
USGovernmentDoD
Tenant ID The tenant id
UAMI Object ID The UAMI object id found in step 1

[!NOTE] The required permissions for the PnP.PowerShell script will require at a minimum:

  1. AppRoleAssignment.ReadWrite.All
  2. Application.Read.All

Reference Link - Add-PnPAzureADServicePrincipalAppRole

powershell

Set the UAMI object id

$objectId = “"

Connection for Commercial and GCC

#Connect-PnPOnline -Url -ClientId -Thumbprint -Tenant

Connection for GCC-High and DoD

Connect-PnPOnline -Url -ClientId -Thumbprint -Tenant -AzureEnvironment

Principal is Object Id of the System Assigned MI

Add-PnPAzureADServicePrincipalAppRole -Principal $objectId -AppRole “Sites.FullControl.All” -BuiltInType SharePointOnline

#Graph SharePoint Site.FullControl.All Add-PnPAzureADServicePrincipalAppRole -Principal $objectId -AppRole “Sites.FullControl.All” -BuiltInType MicrosoftGraph

Grant Directory.Read.All

Add-PnPAzureADServicePrincipalAppRole -Principal $objectId -AppRole “Directory.Read.All” -BuiltInType MicrosoftGraph

Grant Group.Read.All

Add-PnPAzureADServicePrincipalAppRole -Principal $objectId -AppRole “Group.Read.All” -BuiltInType MicrosoftGraph

Grant User.Read.All

Add-PnPAzureADServicePrincipalAppRole -Principal $objectId -AppRole “User.Read.All” -BuiltInType MicrosoftGraph

Disconnect from PnP

Disconnect-PnPOnline

[!NOTE] The sample Connect-PnPOnline connection string within the script above is not the only method of completing this step. Alternative methods are available and may be used if already configured within the local organization.

Step 4: Configure User Assigned Managed Identity RBAC

  1. Select Azure role assignments from the left navigation
  2. Click on + Add role assignment
  3. Add the role assignments shown below in the table
  4. Click Save to add the role assignment
Name Value
Scope Resource Group
Subscription The subscription associated with the resource group
Resource Group The resource group created in step 4
Role Storage Blob Data Contributor
Automation Operator

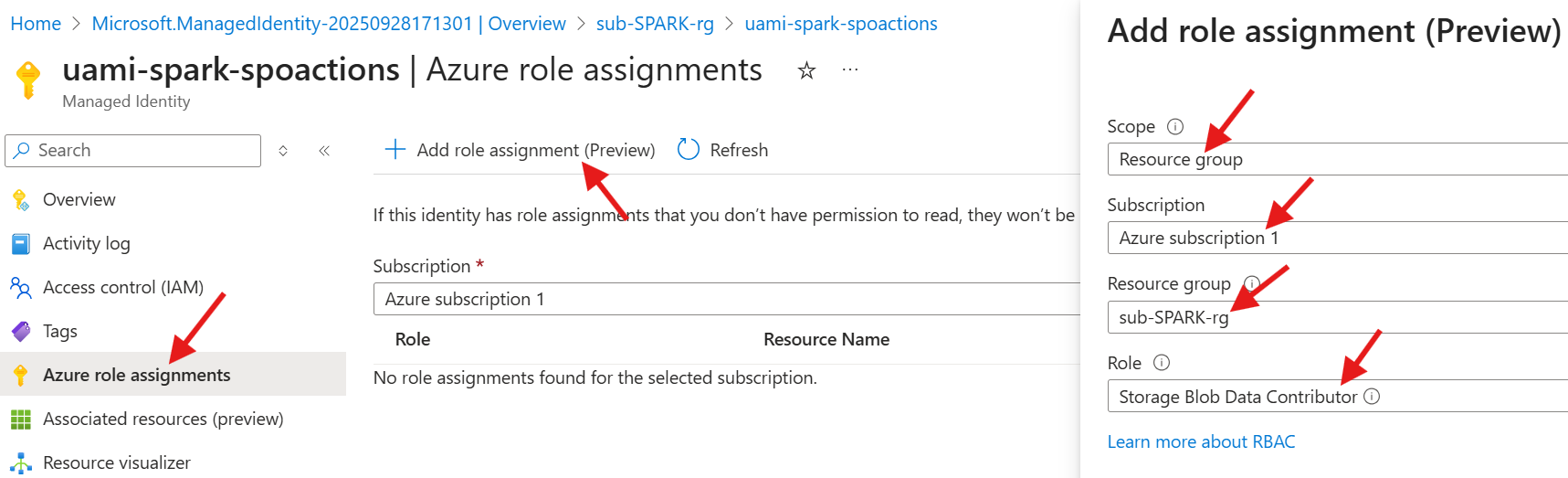

RBAC

[!NOTE] This step will configure the permissions for the storage account used by SQL and the runbooks that will be provisioned later on. This may take several minutes to be added to the uami.

5. Click on Refresh and validate the role assignements were added

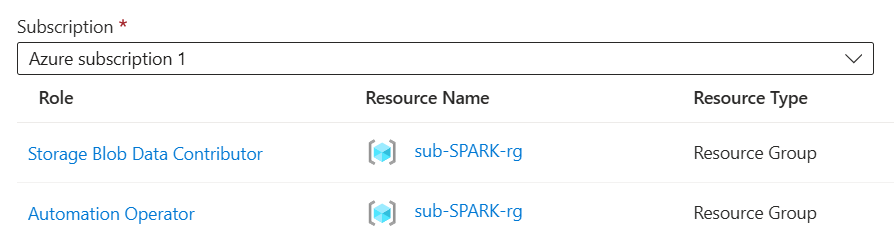

Verify RBAC
